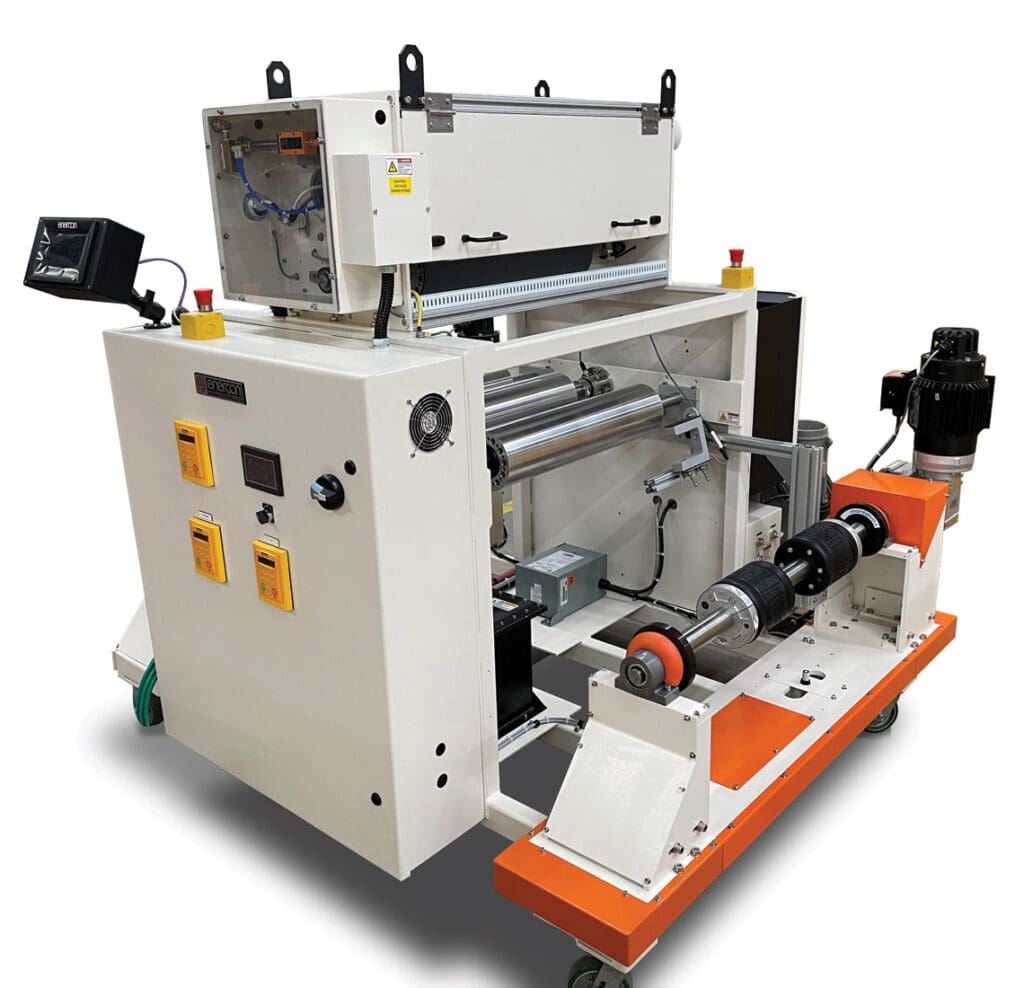

Turnkey Corona & Plasma Treating for Labs & Offline Production
Improve surface energy of films for printing, coating & laminating with an offline treating system with complete unwind/rewind system.
Integrated systems include unwind, rewind, corona or plasma treater, power supply and high voltage transformer. Treats up to 32” wide and 24” roll diameters. Ask us about custom configurations.
Touchscreen Control
Easy Operation
Improve Adhesion

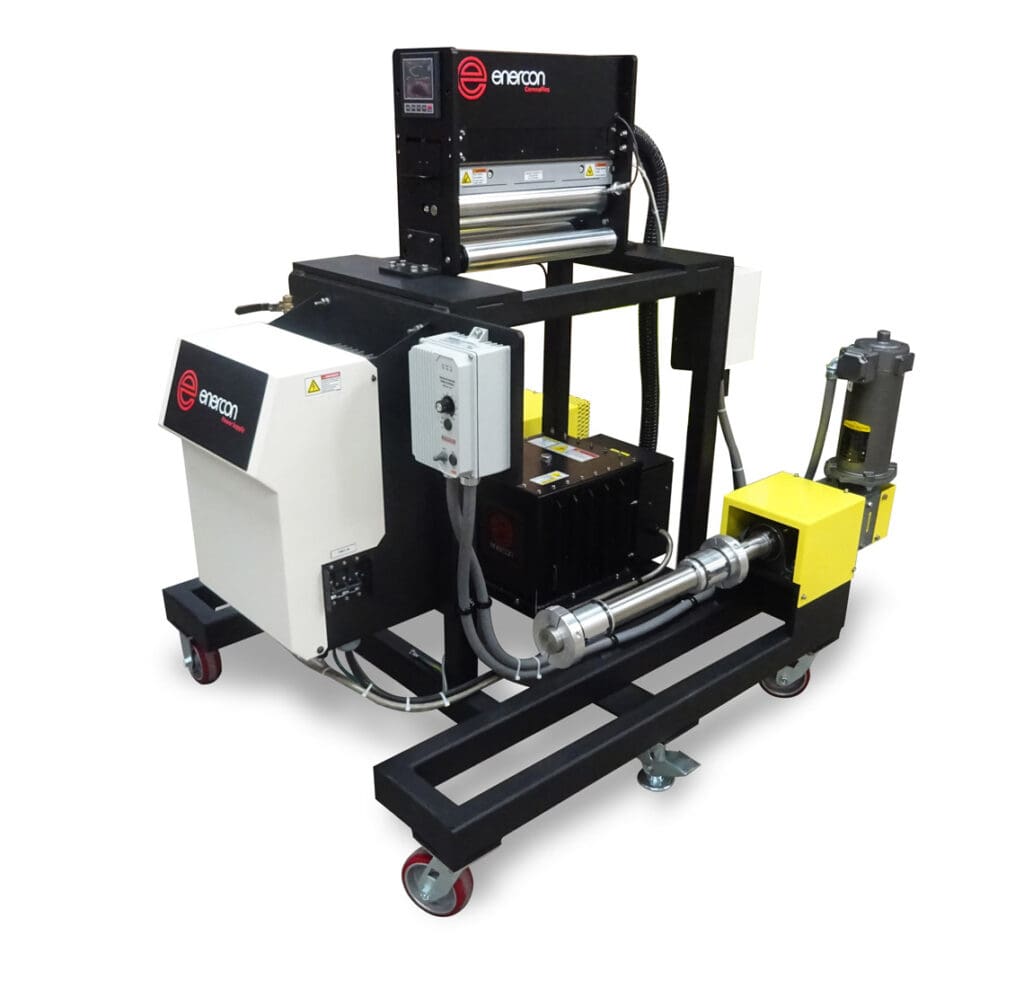

Standard System Ideal for Lab Trials
Deluxe System Ideal for Lab Production
Control
INTUITIVE TOUCH SCREEN CONTROL
Guides operators through operation & power setting. Logs faults and includes on-screen troubleshooting guides.
POWER CONTROL
Power supply mounts directly to station.
WATT DENSITY & PROPORTIONAL SPEED CONTROL
Ensures consistent treatment regardless of line speeds.
Installation
PORTABLE STAND
Built in floor locks and castors for easy portability.
SIMPLE TO INSTALL
Roll the system into place, connect to your exhaust and power, turn on the system.
Operation
ROLL LOADING
Safety chucks on deluxe and 27" or 32" standard systems, cantilevered on others.
SIMPLE THREAD-UP
Removable electrode cartridge locks into place for quick & easy changeover.
CONSTANT LINE SPEED - DELUXE ONLY
As the rewind roll diameter changes, the motor speed changes to keep the web speed constant.
WEB TENSION CONTROL - DELUXE ONLY
Automatically adjusts as the roll diameters change.
ROLL OPTIONS
Bare, Conductive Ceramic & Universal.
| System Comparison | ||||||
|---|---|---|---|---|---|---|
| Standard | Deluxe | |||||
| Web Width | 32” (810mm) | 32” (810mm) | ||||
| Roll Diameter | <12” | <24” | ||||
| Roll Core Diameter | 3" or 6" | 3" or 6" | ||||
| Line Speed | <50fpm | <250fpm speed | ||||
| Tension Control | Manual | Automatic | ||||
| Speed Control | Manual (Rewind RPM Adjustment) | Automatic (Constant Web Speed) | ||||
| Watt Density Control | Yes | Yes | ||||
Enercon systems are designed to operate in a maximum ambient temperature of 40°C (104°F) @ 80% relative humidity, non-condensing.

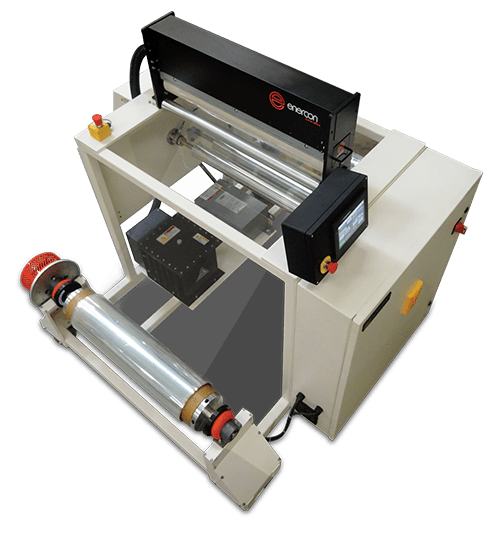

KEY FEATURES CoronaFlex™ Unwind-Rewind System
-
Complete System with Integrated Unwind-Rewind
-
Treat Conductive & Non-Conductive Materials
-
Easy to Use Intuitive Touch Screen Control
-
Watt Density Control for Consistent Treatment
-
Treats Web Widths up to 32" (810mm)
OPTIONS Roll Coverings
-
Silicone
Works well for most applications requiring low or moderate power levels.
-
Conductive Ceramic Coating
Offers greater dieletric strength and durability for more demanding applications.
-
Other Coverings Available Upon Request
CORONA TREATING POWER SUPPLIES
Reliable industry workhorse for basic applications
Proven Reliability with Advanced Features
OPTIONAL EQUIPMENT Which may be recommended or specified:
-
Idler Rolls
-
Network Communication
-
Nip Rolls
-
Ozone Decomposer
-
Quick Disconnect Electrode Cartridge
-
Spare Electrodes
-
Spare Parts Kit
-
Spare Ground Rolls
-
Start-up Assistance
-
Station Guarding
