Corona Treaters for Printing, Coating & Laminating
For fixed width treating of polymer films, foils & paper on converting lines Enercon’s line up of ceramic electrode corona treaters are the ideal choice for effective treatment & reliable performance.
Enercon’s printing, coating & laminating application experts will configure your corona treater for the width of treatment needed, treatment power required, any OEM integration requirements, and other application criteria requiring special web handling features.
The most configurable components of a corona treater are the high efficiency electrodes, the ground roll and the power supply.
Electrode Assemblies
Enercon offers an ASO & ESO station design that accommodate standard and high powered electrodes respectfully. These well proven electrode assembly designs have several beneficial features:
Ozone & Thermal Protection:

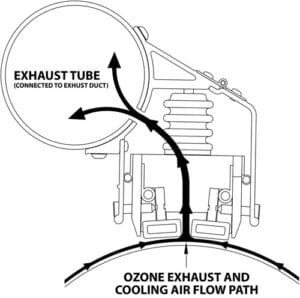

Exhaust through electrode assembly removes ozone from the work area and cools electrodes to maintain thermal stability.
Splice Protection & Fast Thread-up:
Pneumatically actuated electrode assembly pivots out of the way.
Splice Pass-through:

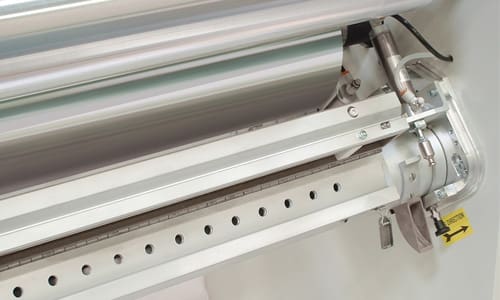

Assembly pivots to protect electrodes from unexpected splices.
Easy Maintenance:
Hinged design enables easy clean-in-place maintenance.
Enercon systems are designed to operate in a maximum ambient temperature of 40°C (104°F) @ 80% relative humidity, non-condensing.
KEY FEATURES For Successful Printing, Coating & Laminating
-
Improve Surface Energy of All Types of Films
-
High-Definition Corona for High Value Films
-
Unique Electrode Assembly Design
-
Custom Configured for Your Application
-
Integrates with All OEM Lines
Our corona treaters integrate with all leading OEMs including Bobst, Comexi, Davis Standard, Delta Modtech, Koenig & Bauer, Mark Andy, Nilpeter, Nordmeccanica, Olbrich, PCMC, SOMA, Sung AN, Uteco, & W&H.
RELATED CONTENT
OPTIONS Roll Coverings
-
Bare Roll
Works well for most applications requiring moderate power levels without special material considerations.
-
Conductive Ceramic Coating
Protects bare roll from oxidation and make routine maintenance easier.
-
Universal Ceramic Roll Coating for High Definition Corona (see below)
Optimizes corona treater performance
CORONA TREATMENT High Definition Corona
Proprietary non-conductive ceramic coating formulation produces powerful & uniform treatment free of filamentary discharges. Produces higher dyne levels at lower watt densities than comparable systems.
And, provides the industry’s best insurance against:
- Film Wrinkling
- Pinholing
- Backside Treatment.
CORONA TREATING POWER SUPPLIES
Reliable industry workhorse for basic applications
Proven Reliability with Advanced Features
OPTIONAL EQUIPMENT Which may be recommended or specified:
-
Idler Rolls
-
Network Communication
-
Nip Rolls
-
Spare Electrodes
-
Spare Parts Kit
-
Spare Ground Rolls
-
Station Guarding
